Description

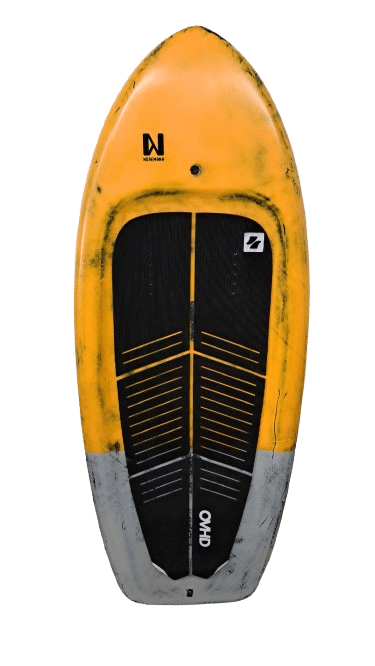

The Luth is the Wingfoil board designed for Freeride, perfect for use on flat water or in the swell. For formed waves, the Ray or Manta would be preferred. It will offer excellent glide for catching the smallest breeze.
The Luth features a clean hull, with a slight double concave on the front third and a flat hull on the rear half, providing great glide and quick takeoff. The bevels are not very pronounced and are vertical, offering the maximum glide surface on the hull. However, they are still present to provide tolerance during touchdowns. The concave deck lowers the center of gravity, and the volume is evenly distributed, with volume at the front to provide good longitudinal stability. As a result, the Luth offers excellent stability during the kneeling takeoff phase, as well as making the transition to planing easier.
Wind range: 13 to 35 knots (depending on the rider’s size).
| Length: 4'9'' (144.8cm) | Length: 4'10'' (147.3 cm) | Length: 5'0'' (152.4 cm) |
|---|---|---|
| Width: 22'' (55.9 cm) | Width: 23'' (58.4 cm) | Width: 24'' (61 cm) |
| Thickness: 3.8'' (9.6 cm) | Thickness: 4.2'' (10.6 cm) | Thickness: 4.5'' (11.4 cm) |
| Volume : 55 Litres | Volume : 65 Litres | Volume : 75 Litres |
| Length: 5'2'' (157.5 cm) | Length: 5'4'' (162.6 cm) | Length: 5'6'' (167.6 cm) |
|---|---|---|
| Width: 25'' (63.5 cm) | Width: 26'' (66 cm) | Width: 27.5'' (68.6 cm) |
| Thickness: 4.8'' (12.2 cm) | Thickness: 4.8'' (12.2 cm) | Thickness: 5.1'' (13.0 cm) |
| Volume : 85 Litres | Volume : 95 Litres | Volume : 105 Litres |
Construction:
Our Wingfoil boards are offered with two different constructions:
- Partial PVC Sandwich: EPS core 20kg/m3, PVC sandwich reinforcement on the deck and rails. PVC reinforcement under the plate with a rigid connection (foam 180kg/m3) between the deck and the hull, and carbon fiber laminate.
- Full PVC Sandwich: EPS core 15kg/m3, PVC sandwich reinforcement on the deck, rails, and hull. PVC reinforcement under the plate with a rigid connection (foam 180kg/m3) between the deck and the hull.
